Name: AK3-380C-BP
Brand: Micro Commercial Co
SKU: AK3-380C-BP
Price: 29.70 USD
Availability: InStock

REF: AK3-380C-BP Micro Commercial Co

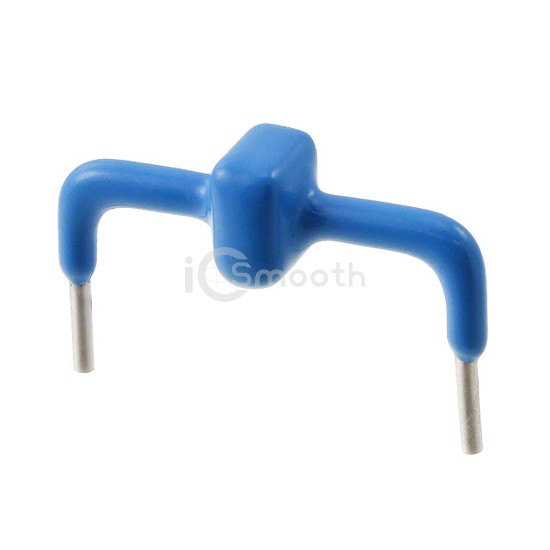

AK3-380C-BP

Micro Commercial Co

TVS DIODE 380VWM 520VC AK

AK3-380C-BP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 380VWM 520VC AK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case Axial, Right Angle Bend (24.15mm Center).

Datasheet Request a Quote

In Stock: 56

Tiered Pricing USD

1+ $29.7000 —

10+ $26.4210 -11%

150+ $22.5595 -24% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	380V
Voltage - Breakdown (Min)	401V
Voltage - Clamping (Max) @ Ipp	520V
Current - Peak Pulse (10/1000µs)	3000A (3kA) (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package	AK
