Name: AK10-190C-BP
Brand: Micro Commercial Co
SKU: AK10-190C-BP
Price: 45.47 USD
Availability: InStock

REF: AK10-190C-BP Micro Commercial Co

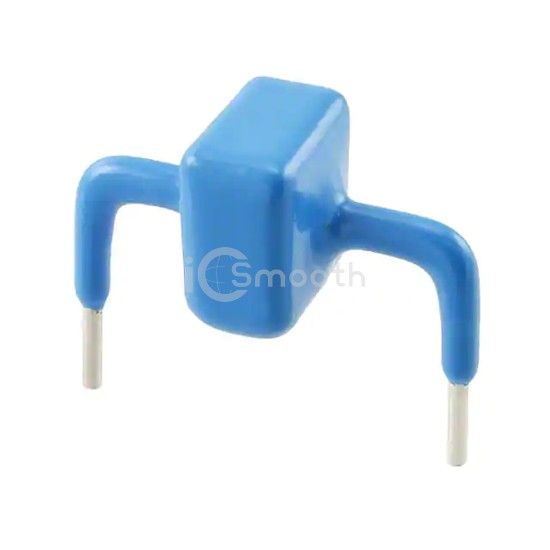

AK10-190C-BP

Micro Commercial Co

TVS DIODE 190VWM 290VC AK

AK10-190C-BP is a TVS - Diodes manufactured by Micro Commercial Co. TVS DIODE 190VWM 290VC AK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case Axial, Right Angle Bend (24.15mm Center).

Datasheet Request a Quote

In Stock: 150

Tiered Pricing USD

1+ $45.4700 —

10+ $38.7500 -15% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	190V
Voltage - Breakdown (Min)	200V
Voltage - Clamping (Max) @ Ipp	290V
Current - Peak Pulse (10/1000µs)	10000A (10kA) (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package	AK
