3SMBJ5949B-TP

In Stock: 3,075

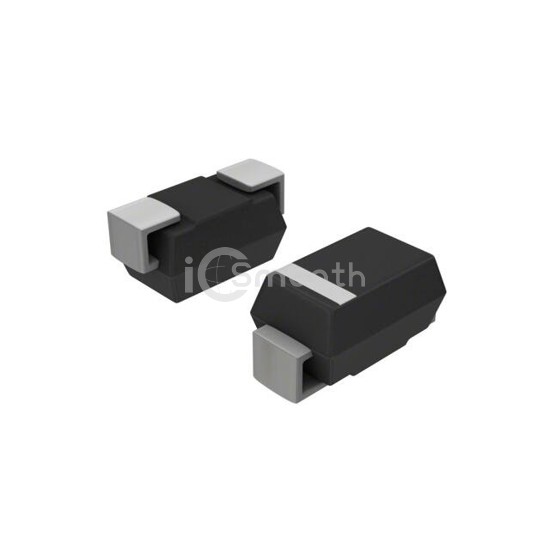

3SMBJ5949B-TP - Micro Commercial Co - Diodes - Zener - Single
REF: 3SMBJ5949B-TP Micro Commercial Co
3SMBJ5949B-TP

Micro Commercial Co

DIODE ZENER 3W SMB

3SMBJ5949B-TP is a Diodes - Zener - Single manufactured by Micro Commercial Co. DIODE ZENER 3W SMB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AA, SMB, power - max 3 W.

Datasheet Request a Quote

In Stock: 3,075

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)100 V
Tolerance±5%
Power - Max3 W
Impedance (Max) (Zzt)250 Ohms
Current - Reverse Leakage @ Vr1 µA @ 76 V
Voltage - Forward (Vf) (Max) @ If1.5 V @ 200 mA
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseDO-214AA, SMB
Supplier Device PackageDO-214AA (SMB)
