2SD2150-S-TP

In Stock: 7,364

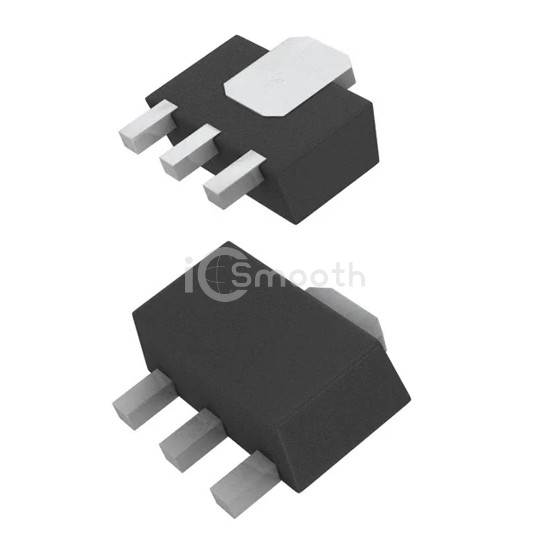

2SD2150-S-TP - Micro Commercial Co - Transistors - Bipolar (BJT) - Single
REF: 2SD2150-S-TP Micro Commercial Co
2SD2150-S-TP

Micro Commercial Co

TRANS NPN 20V 3A SOT89

2SD2150-S-TP is a Transistors - Bipolar (BJT) - Single manufactured by Micro Commercial Co. TRANS NPN 20V 3A SOT89. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-243AA, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 7,364

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic500mV @ 100mA, 2A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce270 @ 100mA, 2V
Power - Max500 mW
Frequency - Transition290MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89
