2SD1691-Y-BP

In Stock: 8,151

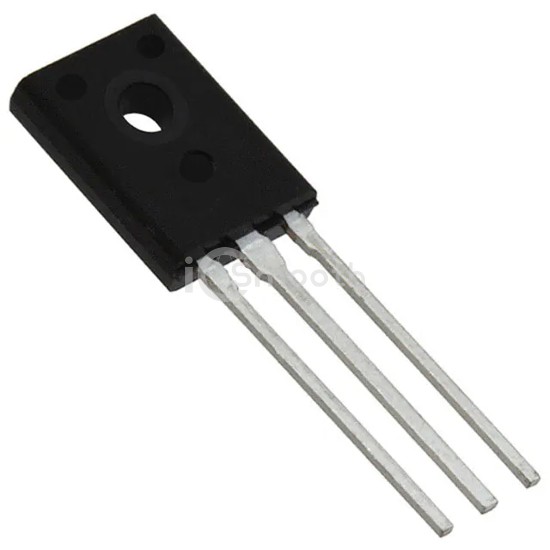

2SD1691-Y-BP - Micro Commercial Co - Transistors - Bipolar (BJT) - Single
REF: 2SD1691-Y-BP Micro Commercial Co
2SD1691-Y-BP

Micro Commercial Co

TRANS NPN 60V 5A TO126

2SD1691-Y-BP is a Transistors - Bipolar (BJT) - Single manufactured by Micro Commercial Co. TRANS NPN 60V 5A TO126. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-225AA, TO-126-3, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 8,151

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic300mV @ 200mA, 2A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce160 @ 2A, 1V
Power - Max1.3 W
Frequency - Transition-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-126
