Name: 2SC2482-O-AP
Brand: Micro Commercial Co
SKU: 2SC2482-O-AP
Availability: InStock

REF: 2SC2482-O-AP Micro Commercial Co

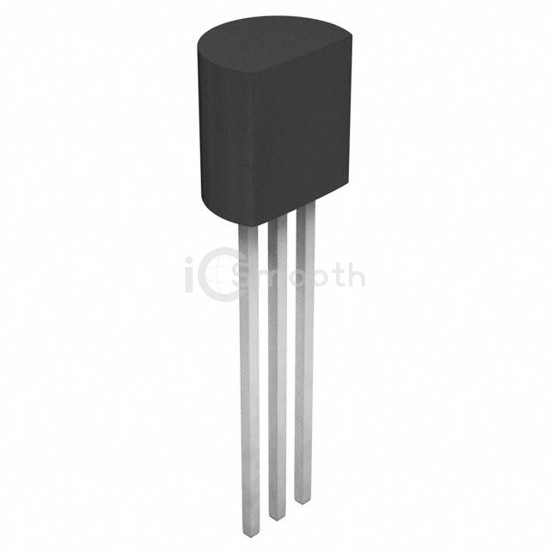

2SC2482-O-AP

TRANS NPN 300V 0.1A TO92MOD

2SC2482-O-AP is a Transistors - Bipolar (BJT) - Single manufactured by Micro Commercial Co. TRANS NPN 300V 0.1A TO92MOD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body (Formed Leads), current - collector (ic) (max) 100 mA.

Datasheet Request a Quote

In Stock: 8,401

Specifications

13 parameters

Product Status	Obsolete
Transistor Type	NPN
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	300 V
Vce Saturation (Max) @ Ib, Ic	1V @ 1mA, 10mA
Current - Collector Cutoff (Max)	5µA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 20mA, 10V

Power - Max	900 mW
Frequency - Transition	50MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 Long Body (Formed Leads)
Supplier Device Package	TO-92MOD
