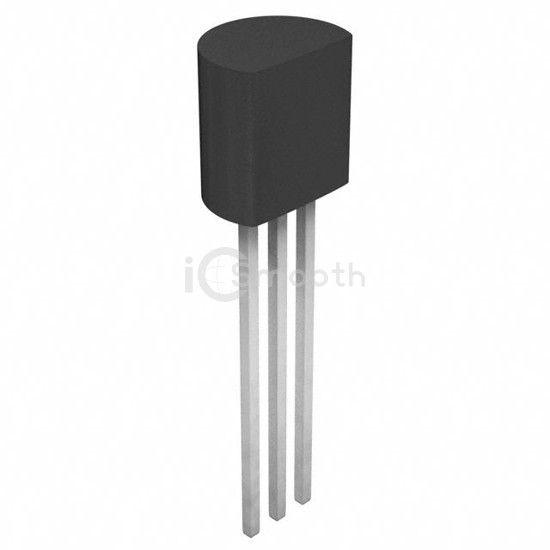

2SC2236-Y-BP

In Stock: 9,876
2SC2236-Y-BP - Micro Commercial Co - Transistors - Bipolar (BJT) - Single
REF: 2SC2236-Y-BP Micro Commercial Co
2SC2236-Y-BP

Micro Commercial Co

TRANS NPN 30V 1.5A TO92MOD

2SC2236-Y-BP is a Transistors - Bipolar (BJT) - Single manufactured by Micro Commercial Co. TRANS NPN 30V 1.5A TO92MOD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 Long Body, current - collector (ic) (max) 1.5 A.

Datasheet Request a Quote

In Stock: 9,876

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)1.5 A
Voltage - Collector Emitter Breakdown (Max)30 V
Vce Saturation (Max) @ Ib, Ic2V @ 30mA, 1.5A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce160 @ 500mA, 2V
Power - Max900 mW
Frequency - Transition120MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92MOD
