Name: 1N5258B-TP
Brand: Micro Commercial Co
SKU: 1N5258B-TP
Availability: InStock

REF: 1N5258B-TP Micro Commercial Co

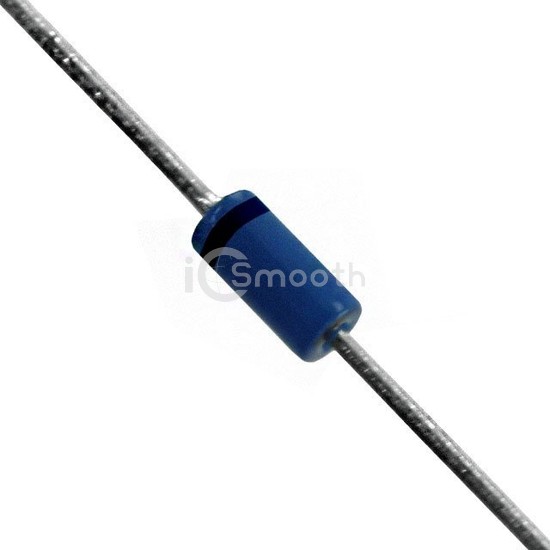

1N5258B-TP

DIODE ZENER 36V 500MW DO35

1N5258B-TP is a Diodes - Zener - Single manufactured by Micro Commercial Co. DIODE ZENER 36V 500MW DO35. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case DO-204AH, DO-35, Axial, power - max 500 mW.

Datasheet Request a Quote

In Stock: 6,741

Specifications

11 parameters

Product Status	Obsolete
Voltage - Zener (Nom) (Vz)	36 V
Tolerance	±5%
Power - Max	500 mW
Impedance (Max) (Zzt)	70 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 27 V

Voltage - Forward (Vf) (Max) @ If	1.1 V @ 200 mA
Operating Temperature	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	DO-35
