Name: MLX92213ELD-AAA-000-RE
Brand: Melexis Technologies NV
SKU: MLX92213ELD-AAA-000-RE
Price: 0.52 USD
Availability: InStock

REF: MLX92213ELD-AAA-000-RE Melexis Technologies NV

MLX92213ELD-AAA-000-RE

Melexis Technologies NV

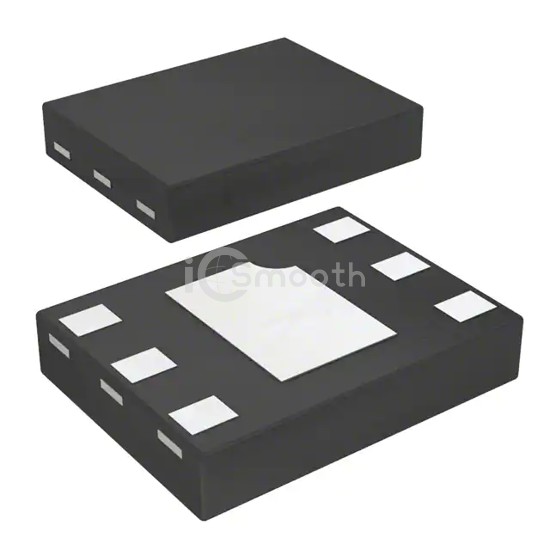

MAGNETIC SWITCH LATCH 6UTQFN

MLX92213ELD-AAA-000-RE is a Magnetic Sensors - Switches (Solid State) manufactured by Melexis Technologies NV. MAGNETIC SWITCH LATCH 6UTQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.6V ~ 3.6V, package / case 6-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1

Tiered Pricing USD

1+ $0.5200 —

5+ $0.4520 -13%

10+ $0.4270 -18%

25+ $0.3980 -23%

50+ $0.3784 -27%

100+ $0.3605 -31%

500+ $0.3243 -38%

1,000+ $0.3109 -40% BEST

Specifications

15 parameters

Product Status	Active
Function	Latch
Technology	Hall Effect
Polarization	South Pole
Sensing Range	5mT Trip, -5mT Release
Test Condition	-40°C ~ 85°C
Voltage - Supply	1.6V ~ 3.6V
Current - Supply (Max)	86µA

Current - Output (Max)	10mA
Output Type	Push-Pull
Features	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	6-UTQFN (1.5x2)
Package / Case	6-XFDFN Exposed Pad
