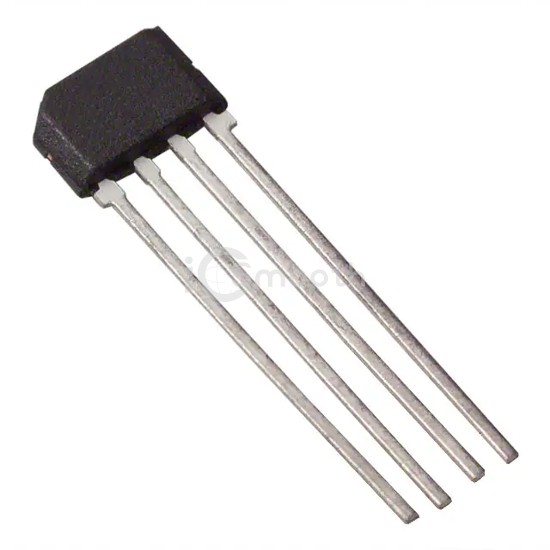

Name: MLX91209LVA-CAA-001-SP
Brand: Melexis Technologies NV
SKU: MLX91209LVA-CAA-001-SP
Price: 2.59 USD
Availability: InStock

REF: MLX91209LVA-CAA-001-SP Melexis Technologies NV

MLX91209LVA-CAA-001-SP

Melexis Technologies NV

HIGH SPEED PROGRAMMABLE CURRENT

MLX91209LVA-CAA-001-SP is a Current Sensors manufactured by Melexis Technologies NV. HIGH SPEED PROGRAMMABLE CURRENT. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 4-SSIP Module.

Datasheet Request a Quote

In Stock: 1,450

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	-
Number of Channels	1
Output	Ratiometric, Voltage (Selectable)
Sensitivity	50mV/A
Frequency	DC ~ 200kHz
Linearity	±0.4%

Accuracy	-
Voltage - Supply	4.5V ~ 5.5V
Response Time	6µs
Current - Supply (Max)	14mA
Operating Temperature	-40°C ~ 125°C (TA)
Polarization	Bidirectional
Mounting Type	Through Hole
Package / Case	4-SSIP Module
Supplier Device Package	4-SIP
