MLX90316EDC-BDG-100-TU

In Stock: 4,539

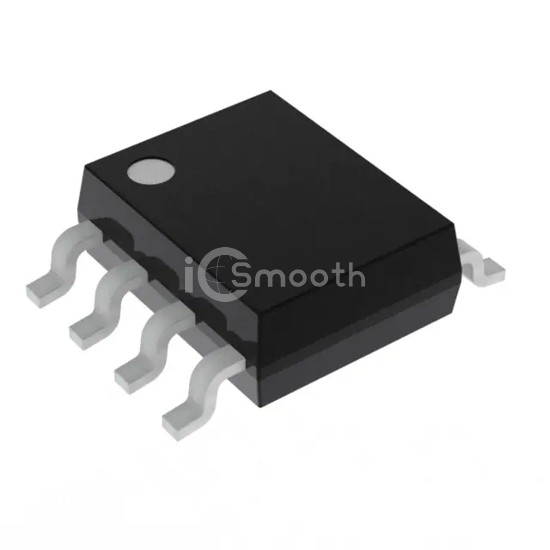

MLX90316EDC-BDG-100-TU - Melexis Technologies NV - Position Sensors - Angle, Linear Position Measuring
REF: MLX90316EDC-BDG-100-TU Melexis Technologies NV
MLX90316EDC-BDG-100-TU

Melexis Technologies NV

SENSOR ROTARY 360DEG SMD

MLX90316EDC-BDG-100-TU is a Position Sensors - Angle, Linear Position Measuring manufactured by Melexis Technologies NV. SENSOR ROTARY 360DEG SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 4,539

Tiered Pricing USD
1+ $5.5100 —
10+ $4.2140 -24%
80+ $3.5813 -35%
160+ $3.4401 -38%
320+ $3.3239 -40%
560+ $3.2452 -41%
1,040+ $3.1715 -42%
2,560+ $3.0847 -44% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputSPI
Output Signal-
Actuator TypeExternal Magnet, Not Included
Linearity±1°
Resistance-
Resistance Tolerance-
Voltage - Supply4.5V ~ 5.5V
Mounting TypeSurface Mount
Termination StyleGull Wing
Operating Temperature-40°C ~ 85°C
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
