MLX90316EDC-BDG-100-SP

In Stock: 45

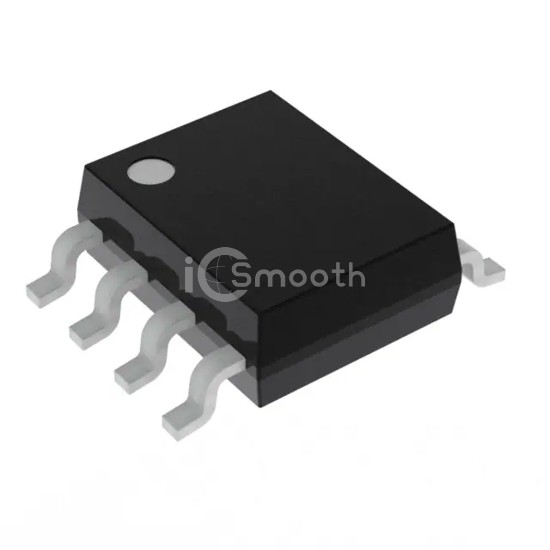

MLX90316EDC-BDG-100-SP - Melexis Technologies NV - Position Sensors - Angle, Linear Position Measuring
REF: MLX90316EDC-BDG-100-SP Melexis Technologies NV
MLX90316EDC-BDG-100-SP

Melexis Technologies NV

SENSOR ROTARY 360DEG SMD

MLX90316EDC-BDG-100-SP is a Position Sensors - Angle, Linear Position Measuring manufactured by Melexis Technologies NV. SENSOR ROTARY 360DEG SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 45

Tiered Pricing USD
1+ $5.5100 —
10+ $4.2140 -24%
25+ $3.8896 -29%
100+ $3.5328 -36%
250+ $3.3627 -39%
500+ $3.2602 -41%
1,000+ $3.1758 -42%
2,500+ $3.0867 -44% BEST

Specifications

17 parameters
Product StatusActive
For MeasuringRotary Position
TechnologyHall Effect
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Linear Range-
OutputSPI
Output Signal-
Actuator TypeExternal Magnet, Not Included
Linearity±1°
Resistance-
Resistance Tolerance-
Voltage - Supply4.5V ~ 5.5V
Mounting TypeSurface Mount
Termination StyleGull Wing
Operating Temperature-40°C ~ 85°C
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
