Name: TMR1340S
Brand: MDT
SKU: TMR1340S
Price: 0.39 USD
Availability: InStock

REF: TMR1340S MDT

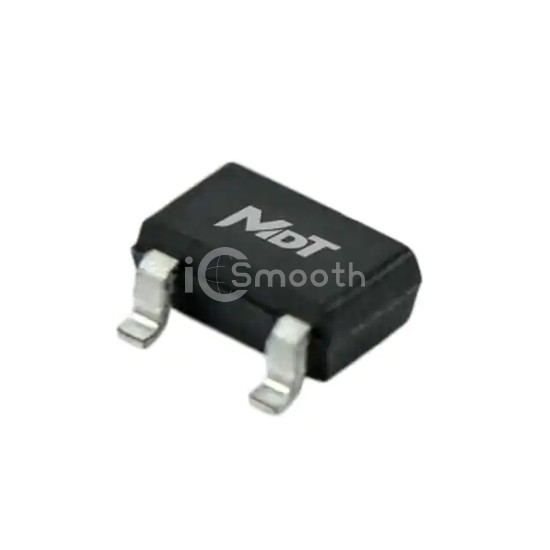

TMR1340S

TMR SENSOR MAG SW OMNI 14G OPDRN

TMR1340S is a Magnetic Sensors - Switches (Solid State) manufactured by MDT. TMR SENSOR MAG SW OMNI 14G OPDRN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.8V ~ 5.5V, package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 14,970

Specifications

15 parameters

Product Status	Active
Function	Omnipolar Switch
Technology	Magnetoresistive
Polarization	North Pole, South Pole
Sensing Range	±1.4mT Trip, ±1mT Release
Test Condition	25°C
Voltage - Supply	1.8V ~ 5.5V
Current - Supply (Max)	1.5µA (Typ)

Current - Output (Max)	20mA
Output Type	Push-Pull
Features	Temperature Compensated
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
