Name: TMR1305T
Brand: MDT
SKU: TMR1305T
Price: 0.44 USD
Availability: InStock

REF: TMR1305T MDT

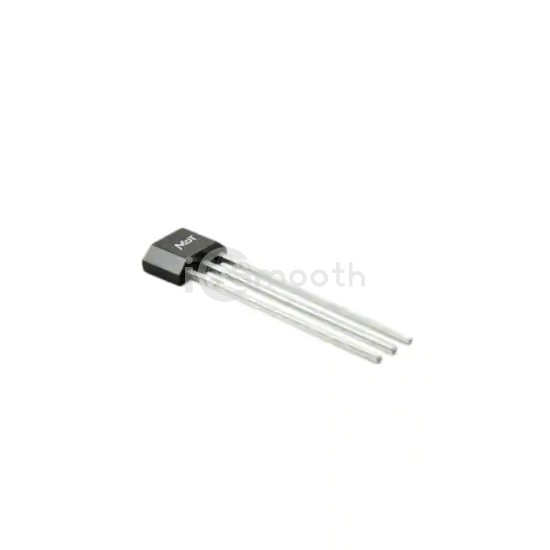

TMR1305T

TMR SENSOR SW OMNI Z-AXIS 2UA

TMR1305T is a Magnetic Sensors - Switches (Solid State) manufactured by MDT. TMR SENSOR SW OMNI Z-AXIS 2UA. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.8V ~ 5.5V, package / case TO-226-3, TO-92-3 Long Body.

Datasheet Request a Quote

In Stock: 15,000

Specifications

15 parameters

Product Status	Active
Function	Omnipolar Switch
Technology	Magnetoresistive
Polarization	North Pole, South Pole
Sensing Range	±3.4mT Trip, ±3mT Release
Test Condition	25°C
Voltage - Supply	1.8V ~ 5.5V
Current - Supply (Max)	2.5µA

Current - Output (Max)	9mA
Output Type	Push-Pull
Features	Temperature Compensated
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Through Hole
Supplier Device Package	TO-92S
Package / Case	TO-226-3, TO-92-3 Long Body
