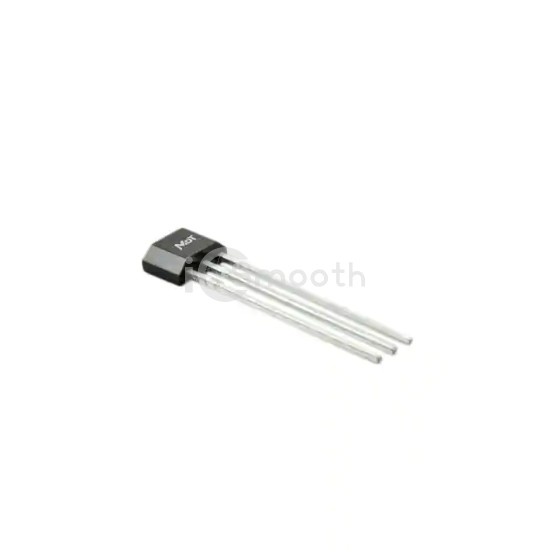

Name: TMR1202HT
Brand: MDT
SKU: TMR1202HT
Price: 0.72 USD
Availability: InStock

REF: TMR1202HT MDT

TMR1202HT

TMR SENSOR BIPL 17G 1.5UA FAST

TMR1202HT is a Magnetic Sensors - Switches (Solid State) manufactured by MDT. TMR SENSOR BIPL 17G 1.5UA FAST. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TA), voltage - supply 1.8V ~ 5.5V, package / case TO-226-3, TO-92-3 Long Body.

Datasheet Request a Quote

In Stock: 75

Specifications

15 parameters

Product Status	Active
Function	Bipolar Switch
Technology	Magnetoresistive
Polarization	North Pole, South Pole
Sensing Range	1.7mT Trip, -1.7mT Release
Test Condition	25°C
Voltage - Supply	1.8V ~ 5.5V
Current - Supply (Max)	1.5µA

Current - Output (Max)	9mA
Output Type	Push-Pull
Features	Temperature Compensated
Operating Temperature	-40°C ~ 150°C (TA)
Mounting Type	Through Hole
Supplier Device Package	TO-92S
Package / Case	TO-226-3, TO-92-3 Long Body
