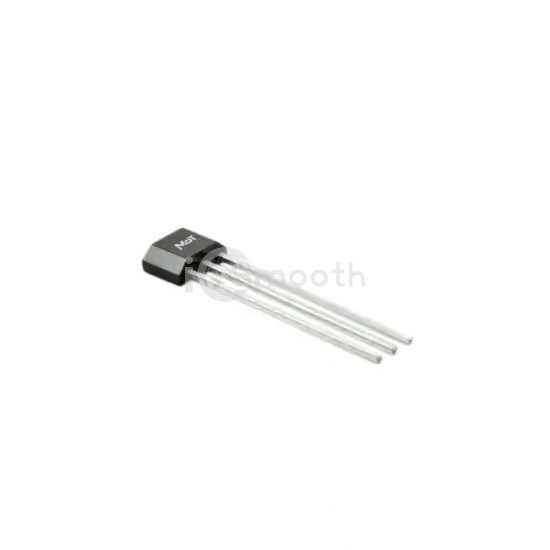

Name: TMR1162T
Brand: MDT
SKU: TMR1162T
Price: 0.39 USD
Availability: InStock

REF: TMR1162T MDT

TMR1162T

TMR SENSOR MAG SW UNI 17G 200NA

TMR1162T is a Magnetic Sensors - Switches (Solid State) manufactured by MDT. TMR SENSOR MAG SW UNI 17G 200NA. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.8V ~ 5.5V, package / case TO-226-3, TO-92-3 Long Body.

Datasheet Request a Quote

In Stock: 75

Specifications

15 parameters

Product Status	Active
Function	Unipolar Switch
Technology	Magnetoresistive
Polarization	South Pole
Sensing Range	1.7mT Trip, 1.3mT Release
Test Condition	25°C
Voltage - Supply	1.8V ~ 5.5V
Current - Supply (Max)	200nA

Current - Output (Max)	20mA
Output Type	Open Drain
Features	Temperature Compensated
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Through Hole
Supplier Device Package	TO-92S
Package / Case	TO-226-3, TO-92-3 Long Body
