Name: ESD5Z24
Brand: MDD
SKU: ESD5Z24
Price: 0.13 USD
Availability: InStock

REF: ESD5Z24 MDD

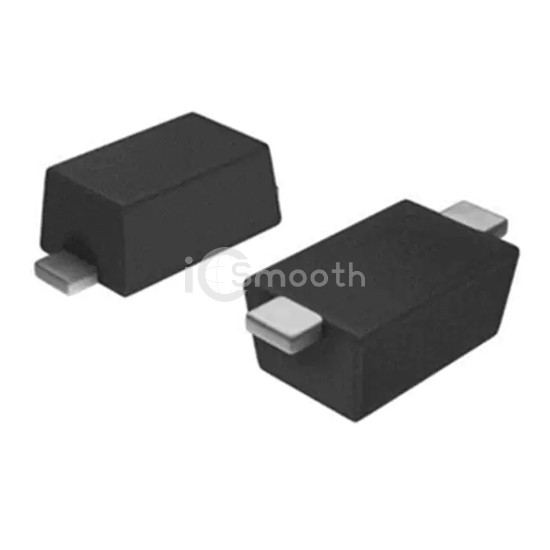

ESD5Z24

TVS DIODE 24VWM 35VC SOD523

ESD5Z24 is a TVS - Diodes manufactured by MDD. TVS DIODE 24VWM 35VC SOD523. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOD-523.

Datasheet Request a Quote

In Stock: 6,835

Tiered Pricing USD

1+ $0.1300 —

10+ $0.0890 -32%

100+ $0.0600 -54%

500+ $0.0460 -65%

1,000+ $0.0370 -72% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	24V
Voltage - Breakdown (Min)	26V
Voltage - Clamping (Max) @ Ipp	-
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	300W
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	50pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOD-523
Supplier Device Package	SOD-523
