Name: SPX29151ICF-1-8
Brand: MaxLinear, Inc.
SKU: SPX29151ICF-1-8
Availability: InStock

REF: SPX29151ICF-1-8 MaxLinear, Inc.

SPX29151ICF-1-8

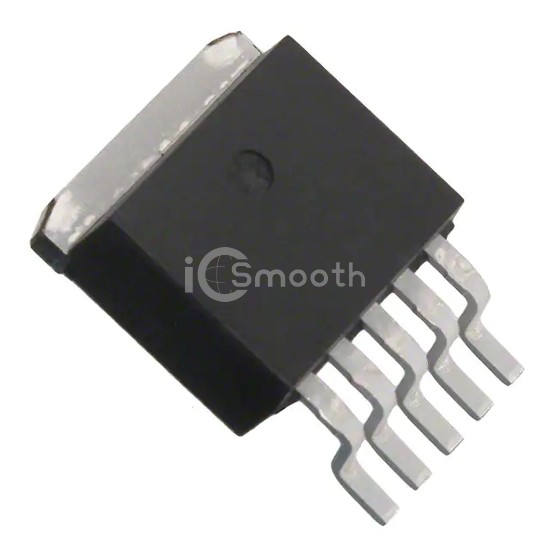

IC REG LINEAR 1.8V 1.5A TO263-5

SPX29151ICF-1-8 is a PMIC - Voltage Regulators - Linear manufactured by MaxLinear, Inc.. IC REG LINEAR 1.8V 1.5A TO263-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 25 mA.

Datasheet Request a Quote

In Stock: 6,293

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	1.5A

Current - Quiescent (Iq)	-
Current - Supply (Max)	25 mA
PSRR	-
Control Features	Enable
Protection Features	Over Current, Reverse Polarity, Transient Voltage
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263-5
