MASWCC0006

In Stock: 4,688

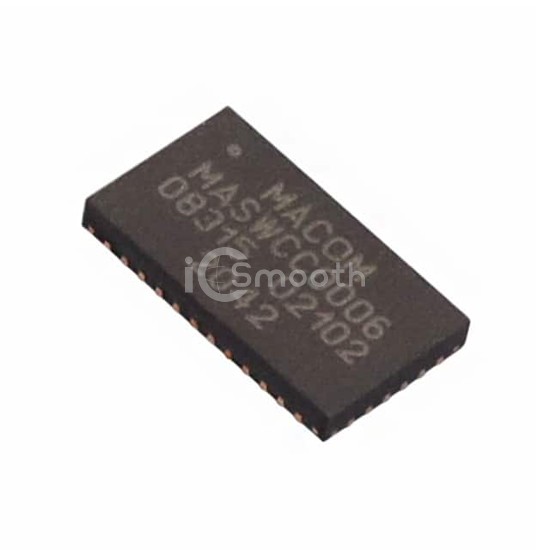

MASWCC0006 - MACOM Technology Solutions - RF Switches
REF: MASWCC0006 MACOM Technology Solutions
MASWCC0006

MACOM Technology Solutions

SWITCH,PB-FREE EQUIVALENT OF SW9

MASWCC0006 is a RF Switches manufactured by MACOM Technology Solutions. SWITCH,PB-FREE EQUIVALENT OF SW9. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 36-VFQFN Exposed Pad, CSP, frequency range 0Hz ~ 4GHz.

Datasheet Request a Quote

In Stock: 4,688

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyAbsorptive
CircuitSP6T
Frequency Range0Hz ~ 4GHz
Isolation25dB (min)
Insertion Loss2.4dB (max)
Test Frequency4GHz
P1dB27dBm
IIP340dBm
Features-
Impedance50Ohm
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Package / Case36-VFQFN Exposed Pad, CSP
Supplier Device Package36-PQFN, CSP (4x7)
