MASW-011105-TR0500

In Stock: 8,732

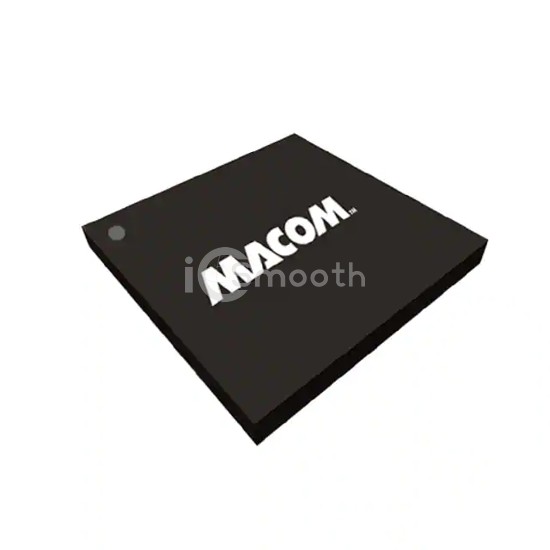

MASW-011105-TR0500 - MACOM Technology Solutions - RF Switches
REF: MASW-011105-TR0500 MACOM Technology Solutions
MASW-011105-TR0500

MACOM Technology Solutions

IC RF SWITCH SPDT 14QFN

MASW-011105-TR0500 is a RF Switches manufactured by MACOM Technology Solutions. IC RF SWITCH SPDT 14QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 5V, package / case 14-VFQFN Exposed Pad, frequency range 17.7GHz ~ 31GHz.

Datasheet Request a Quote

In Stock: 8,732

Tiered Pricing USD
1+ $33.8400 —
10+ $27.4600 -19%
25+ $25.8652 -24%
100+ $24.1126 -29%
250+ $23.4500 -31% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range17.7GHz ~ 31GHz
Isolation30dB
Insertion Loss1.6dB
Test Frequency31GHz
P1dB-
IIP343dBm
Features-
Impedance50Ohm
Voltage - Supply5V
Operating Temperature-40°C ~ 85°C
Package / Case14-VFQFN Exposed Pad
Supplier Device Package14-PQFN (3x3)
