MASW-011055-TR0500

In Stock: 15,697

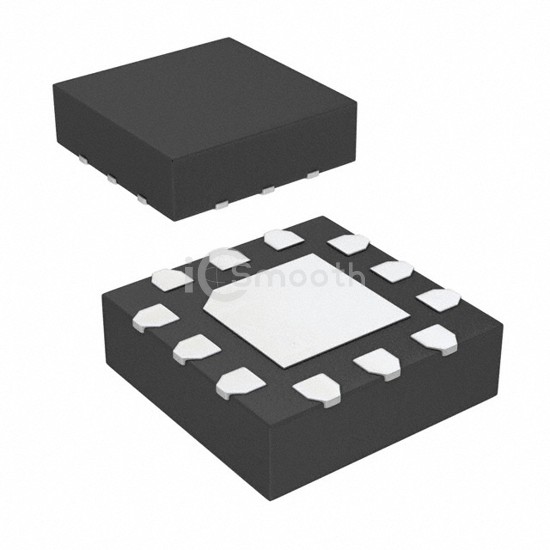

MASW-011055-TR0500 - MACOM Technology Solutions - RF Switches
REF: MASW-011055-TR0500 MACOM Technology Solutions
MASW-011055-TR0500

MACOM Technology Solutions

IC RF SWITCH SPDT 3GHZ 12VQFN

MASW-011055-TR0500 is a RF Switches manufactured by MACOM Technology Solutions. IC RF SWITCH SPDT 3GHZ 12VQFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 5V, package / case 12-LFQFN Exposed Pad, frequency range 30MHz ~ 3GHz.

Datasheet Request a Quote

In Stock: 15,697

Tiered Pricing USD
1+ $33.2700 —
10+ $26.9780 -19%
25+ $25.4068 -24%
100+ $23.6800 -29%
250+ $23.0160 -31% BEST

Specifications

16 parameters
Product StatusActive
RF Type-
TopologyReflective
CircuitSPDT
Frequency Range30MHz ~ 3GHz
Isolation51dB
Insertion Loss0.35dB
Test Frequency2GHz
P1dB-
IIP366dBm
Features-
Impedance-
Voltage - Supply5V
Operating Temperature-40°C ~ 85°C
Package / Case12-LFQFN Exposed Pad
Supplier Device Package12-HQFN (5x5)
