MASW-008566-TR3000

In Stock: 10,983

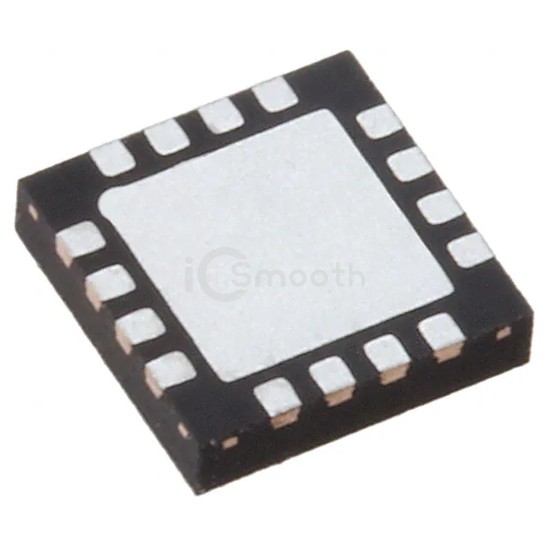

MASW-008566-TR3000 - MACOM Technology Solutions - RF Switches
REF: MASW-008566-TR3000 MACOM Technology Solutions
MASW-008566-TR3000

MACOM Technology Solutions

IC RF SWITCH SP4T 3GHZ 16QFN

MASW-008566-TR3000 is a RF Switches manufactured by MACOM Technology Solutions. IC RF SWITCH SP4T 3GHZ 16QFN. Key specifications: operating temperature -40°C ~ 85°C, package / case 16-VQFN Exposed Pad, frequency range 0Hz ~ 3GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 10,983

Tiered Pricing USD
1+ $7.4600 —
10+ $5.7610 -23%
25+ $5.3368 -28%
100+ $4.8707 -35%
250+ $4.6484 -38%
500+ $4.5144 -39%
1,000+ $4.4660 -40% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSP4T
Frequency Range0Hz ~ 3GHz
Isolation18.5dB
Insertion Loss1dB
Test Frequency3GHz
P1dB-
IIP3-
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-40°C ~ 85°C
Package / Case16-VQFN Exposed Pad
Supplier Device Package16-PQFN (4x4)
