MADP-011104-TR0500

In Stock: 485

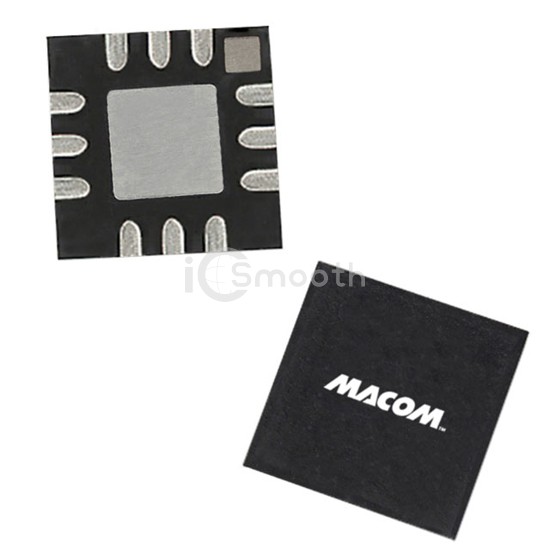

MADP-011104-TR0500 - MACOM Technology Solutions - Diodes - RF
REF: MADP-011104-TR0500 MACOM Technology Solutions
MADP-011104-TR0500

MACOM Technology Solutions

RF DIODE PIN 800V 12PQFN

MADP-011104-TR0500 is a Diodes - RF manufactured by MACOM Technology Solutions. RF DIODE PIN 800V 12PQFN. Key specifications: operating temperature 175°C (TJ), package / case 12-TFQFN Exposed Pad, current - max 250 mA.

Datasheet Request a Quote

In Stock: 485

Tiered Pricing USD
1+ $27.0400 —
10+ $21.7870 -19%
25+ $20.4748 -24%
100+ $19.0327 -30%
250+ $18.3680 -32% BEST

Specifications

10 parameters
Product StatusActive
Diode TypePIN - Single
Voltage - Peak Reverse (Max)800V
Current - Max250 mA
Capacitance @ Vr, F0.45pF @ 40V, 15MHz
Resistance @ If, F2.2Ohm @ 10mA, 3GHz
Power Dissipation (Max)-
Operating Temperature175°C (TJ)
Package / Case12-TFQFN Exposed Pad
Supplier Device Package12-PQFN (3x3)
