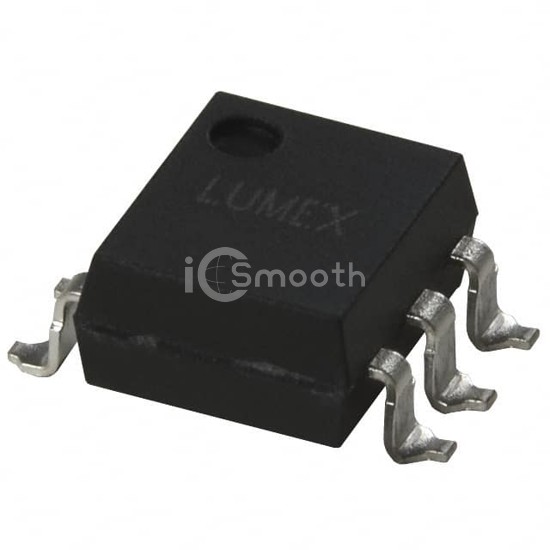

Name: OCP-PCTB116/E-TR
Brand: Lumex Opto/Components Inc.
SKU: OCP-PCTB116/E-TR
Availability: InStock

REF: OCP-PCTB116/E-TR Lumex Opto/Components Inc.

OCP-PCTB116/E-TR

OPTOISO 5KV TRANS W/BASE 6SMD

OCP-PCTB116/E-TR is a Optoisolators - Transistor, Photovoltaic Output manufactured by Lumex Opto/Components Inc.. OPTOISO 5KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,524

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	60% @ 2mA
Current Transfer Ratio (Max)	600% @ 2mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	5µs, 4µs
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	60V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	300mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
