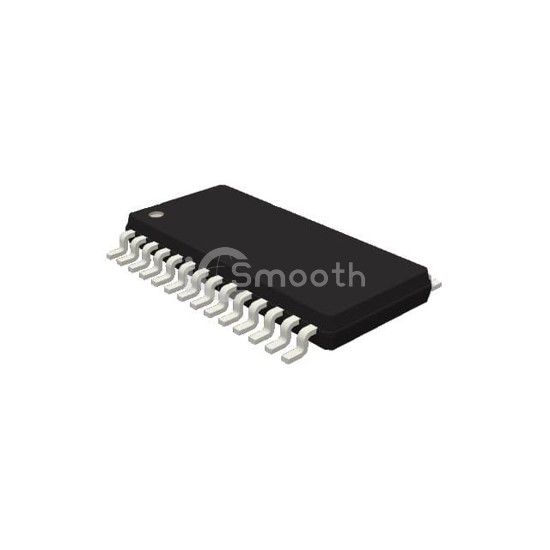

LS7766DO-TS

In Stock: 537
LS7766DO-TS - LSI/CSI - Logic - Counters, Dividers
REF: LS7766DO-TS LSI/CSI
LS7766DO-TS

LSI/CSI

32-BIT QUADRATURE COUNTER

LS7766DO-TS is a Logic - Counters, Dividers manufactured by LSI/CSI. 32-BIT QUADRATURE COUNTER. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 80°C (TA), voltage - supply 3 V ~ 5.5 V, package / case 28-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 537

Specifications

14 parameters
Product StatusActive
Logic TypeDivide-by-N
DirectionUp, Down
Number of Elements2
Number of Bits per Element8
ResetAsynchronous/Synchronous
TimingAsynchronous/Synchronous
Count Rate40 MHz
Trigger TypePositive, Negative
Voltage - Supply3 V ~ 5.5 V
Operating Temperature-25°C ~ 80°C (TA)
Mounting TypeSurface Mount
Package / Case28-TSSOP (0.173", 4.40mm Width)
Supplier Device Package28-TSSOP
