LS7766DO

In Stock: 1,043

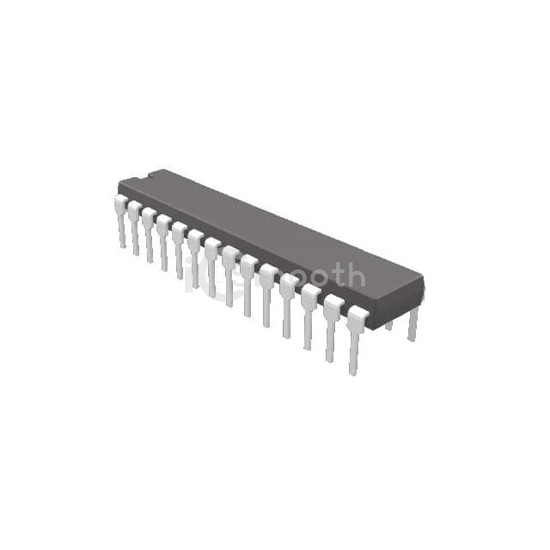

LS7766DO - LSI/CSI - Logic - Counters, Dividers
REF: LS7766DO LSI/CSI
LS7766DO

LSI/CSI

32-BIT QUADRATURE COUNTER

LS7766DO is a Logic - Counters, Dividers manufactured by LSI/CSI. 32-BIT QUADRATURE COUNTER. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 80°C (TA), voltage - supply 3 V ~ 5.5 V, package / case 28-DIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 1,043

Tiered Pricing USD
1+ $14.7200 —
25+ $11.8400 -20%
100+ $9.4500 -36%
500+ $7.6200 -48%
1,000+ $6.6000 -55% BEST

Specifications

14 parameters
Product StatusActive
Logic TypeDivide-by-N
DirectionUp, Down
Number of Elements2
Number of Bits per Element8
ResetAsynchronous/Synchronous
TimingAsynchronous/Synchronous
Count Rate40 MHz
Trigger TypePositive, Negative
Voltage - Supply3 V ~ 5.5 V
Operating Temperature-25°C ~ 80°C (TA)
Mounting TypeThrough Hole
Package / Case28-DIP (0.600", 15.24mm)
Supplier Device Package28-DIP
