Name: TPSMD22A
Brand: Littelfuse Inc.
SKU: TPSMD22A
Price: 0.53 USD
Availability: InStock

REF: TPSMD22A Littelfuse Inc.

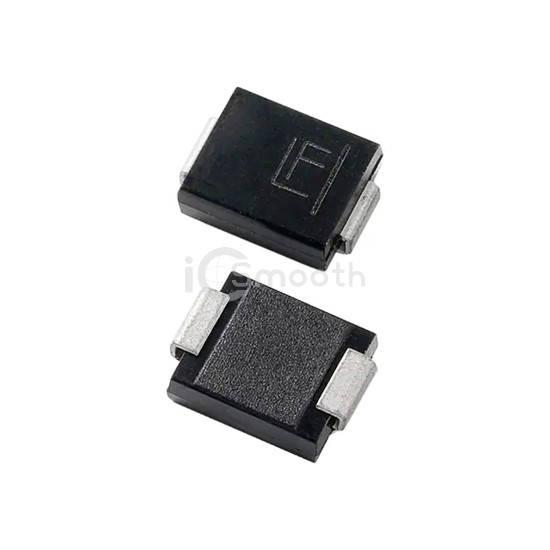

TPSMD22A

TVS DIODE 22VWM 35.5VC DO214AB

TPSMD22A is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 22VWM 35.5VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 15,095

Tiered Pricing USD

1+ $0.5300 —

10+ $0.4500 -15% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	84.5A

Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
