Name: TPSMC56A
Brand: Littelfuse Inc.
SKU: TPSMC56A
Price: 0.27 USD
Availability: InStock

REF: TPSMC56A Littelfuse Inc.

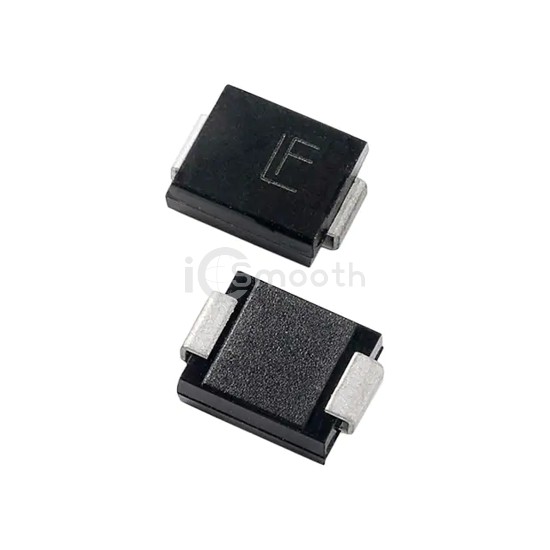

TPSMC56A

TVS DIODE 47.8VWM 77VC DO214AB

TPSMC56A is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 47.8VWM 77VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 2,817

Tiered Pricing USD

3,000+ $0.2685 —

6,000+ $0.2607 -3%

9,000+ $0.2509 -7% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	47.8V
Voltage - Breakdown (Min)	53.2V
Voltage - Clamping (Max) @ Ipp	77V
Current - Peak Pulse (10/1000µs)	19.7A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
