Name: TPSMC16A
Brand: Littelfuse Inc.
SKU: TPSMC16A
Price: 0.78 USD
Availability: InStock

REF: TPSMC16A Littelfuse Inc.

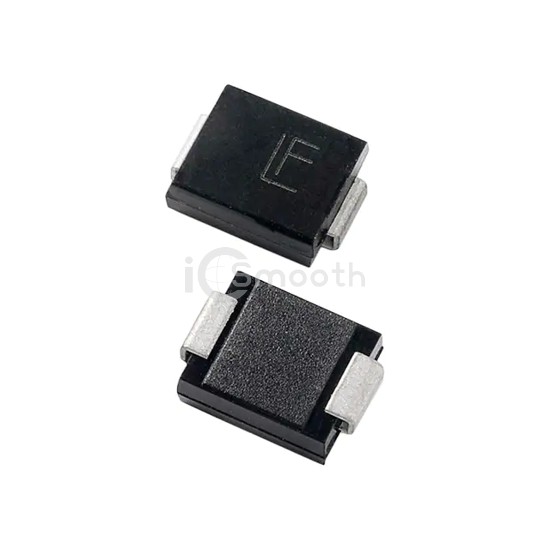

TPSMC16A

TVS DIODE 13.6VWM 22.5VC DO214AB

TPSMC16A is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 13.6VWM 22.5VC DO214AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case DO-214AB, SMC.

Datasheet Request a Quote

In Stock: 1,088

Tiered Pricing USD

1+ $0.7800 —

10+ $0.6640 -15%

100+ $0.4782 -39%

500+ $0.3655 -53%

1,000+ $0.3303 -58% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	13.6V
Voltage - Breakdown (Min)	15.2V
Voltage - Clamping (Max) @ Ipp	22.5V
Current - Peak Pulse (10/1000µs)	67.6A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
