Name: TPSMB56A
Brand: Littelfuse Inc.
SKU: TPSMB56A
Price: 0.37 USD
Availability: InStock

REF: TPSMB56A Littelfuse Inc.

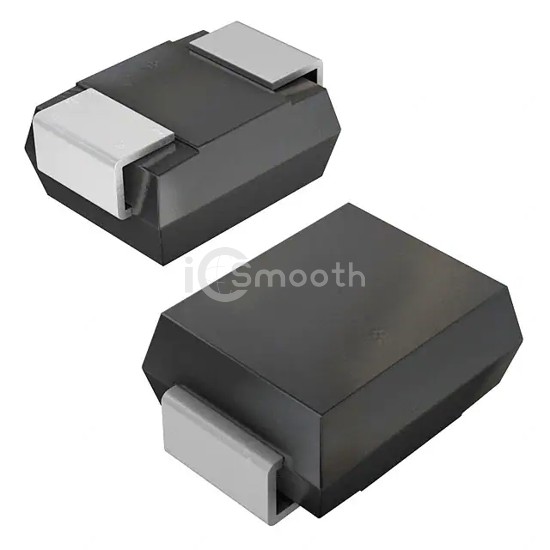

TPSMB56A

TVS DIODE 47.8VWM 77VC DO214AA

TPSMB56A is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 47.8VWM 77VC DO214AA. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 175°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 6,093

Tiered Pricing USD

1+ $0.3700 —

10+ $0.3130 -15%

100+ $0.3010 -19%

500+ $0.2400 -35%

1,000+ $0.1950 -47% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	47.8V
Voltage - Breakdown (Min)	53.2V
Voltage - Clamping (Max) @ Ipp	77V
Current - Peak Pulse (10/1000µs)	7.9A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMBJ)
