Name: TPSMB16A
Brand: Littelfuse Inc.
SKU: TPSMB16A
Price: 0.54 USD
Availability: InStock

REF: TPSMB16A Littelfuse Inc.

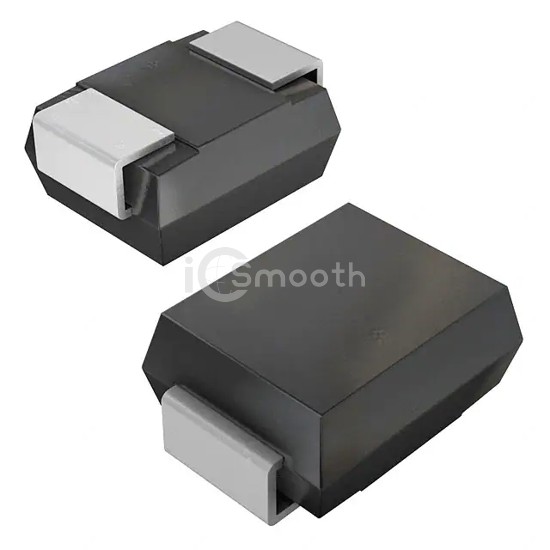

TPSMB16A

TVS DIODE 13.6VWM 22.5VC DO214AA

TPSMB16A is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 13.6VWM 22.5VC DO214AA. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 175°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 3,000

Tiered Pricing USD

1+ $0.5400 —

10+ $0.4060 -25%

100+ $0.2770 -49%

500+ $0.2170 -60%

1,000+ $0.1950 -64% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	13.6V
Voltage - Breakdown (Min)	15.2V
Voltage - Clamping (Max) @ Ipp	22.5V
Current - Peak Pulse (10/1000µs)	27.1A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	DO-214AA (SMBJ)
