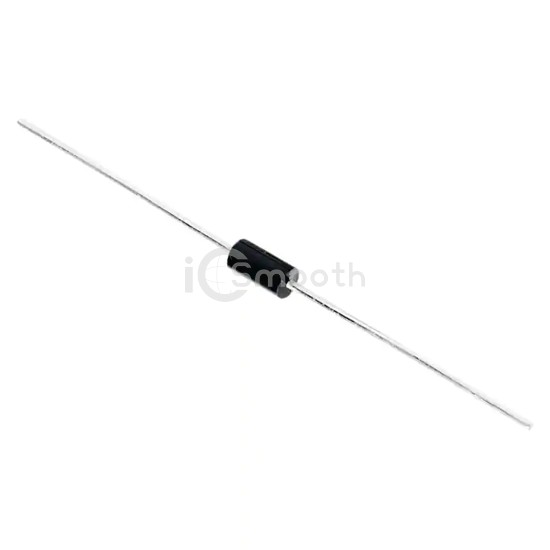

Name: TP6KE18A
Brand: Littelfuse Inc.
SKU: TP6KE18A
Price: 0.56 USD
Availability: InStock

REF: TP6KE18A Littelfuse Inc.

TP6KE18A

TVS DIODE 15.3VWM 25.2VC DO204AC

TP6KE18A is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 15.3VWM 25.2VC DO204AC. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case DO-204AC, DO-15, Axial.

Datasheet Request a Quote

In Stock: 5,121

Tiered Pricing USD

1+ $0.5600 —

10+ $0.4060 -28%

100+ $0.2770 -51%

500+ $0.2170 -61%

2,000+ $0.1973 -65% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	15.3V
Voltage - Breakdown (Min)	17.1V
Voltage - Clamping (Max) @ Ipp	25.2V
Current - Peak Pulse (10/1000µs)	24.2A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AC, DO-15, Axial
Supplier Device Package	DO-204AC (DO-15)
