Name: TP1.5KE20A
Brand: Littelfuse Inc.
SKU: TP1.5KE20A
Price: 0.35 USD
Availability: InStock

REF: TP1.5KE20A Littelfuse Inc.

TP1.5KE20A

TVS DIODE 20VWM 27.7VC DO201

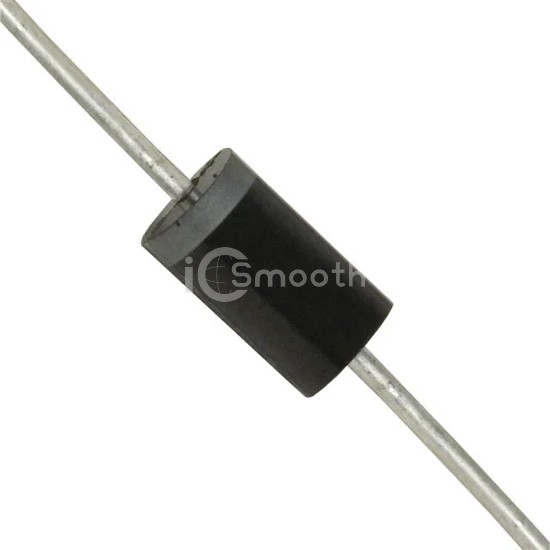

TP1.5KE20A is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 20VWM 27.7VC DO201. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case DO-201AA, DO-27, Axial.

Datasheet Request a Quote

In Stock: 4,099

Tiered Pricing USD

1,200+ $0.3538 —

2,400+ $0.2940 -17%

3,600+ $0.2710 -23%

6,000+ $0.2625 -26% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	20V
Voltage - Breakdown (Min)	19V
Voltage - Clamping (Max) @ Ipp	27.7V
Current - Peak Pulse (10/1000µs)	54.9A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	DO-201
