Name: TP1.5KE16CA
Brand: Littelfuse Inc.
SKU: TP1.5KE16CA
Price: 1.09 USD
Availability: InStock

REF: TP1.5KE16CA Littelfuse Inc.

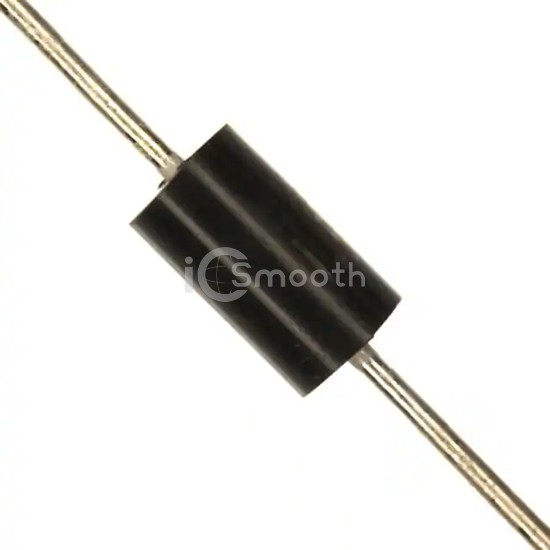

TP1.5KE16CA

TVS DIODE 13.6VWM 22.5VC DO201

TP1.5KE16CA is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 13.6VWM 22.5VC DO201. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case DO-201AA, DO-27, Axial.

Datasheet Request a Quote

In Stock: 1,697

Tiered Pricing USD

1+ $1.0900 —

10+ $0.6850 -37%

100+ $0.4510 -59%

500+ $0.3504 -68% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	13.6V
Voltage - Breakdown (Min)	15.2V
Voltage - Clamping (Max) @ Ipp	22.5V
Current - Peak Pulse (10/1000µs)	67.6A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	DO-201
