Name: TP1.5KE13A
Brand: Littelfuse Inc.
SKU: TP1.5KE13A
Price: 0.31 USD
Availability: InStock

REF: TP1.5KE13A Littelfuse Inc.

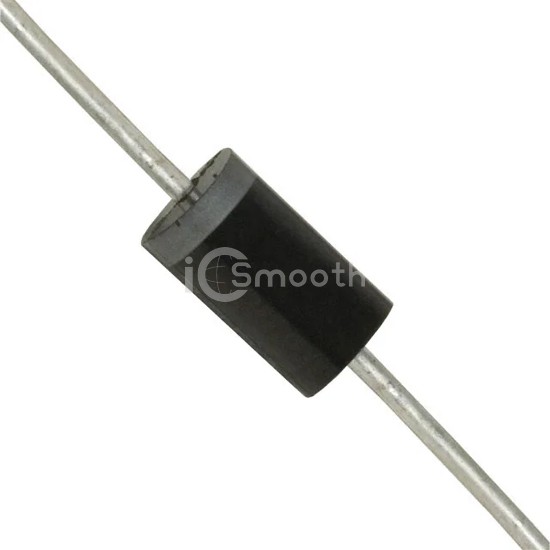

TP1.5KE13A

TVS DIODE 11.1VWM 18.2VC DO201

TP1.5KE13A is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 11.1VWM 18.2VC DO201. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case DO-201AA, DO-27, Axial.

Datasheet Request a Quote

In Stock: 4,884

Tiered Pricing USD

1,200+ $0.3104 —

2,400+ $0.2843 -8%

3,600+ $0.2710 -13%

6,000+ $0.2625 -15% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	11.1V
Voltage - Breakdown (Min)	12.4V
Voltage - Clamping (Max) @ Ipp	18.2V
Current - Peak Pulse (10/1000µs)	83.5A

Power - Peak Pulse	1500W (1.5kW)
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-201AA, DO-27, Axial
Supplier Device Package	DO-201
