Name: SZP6SMB16CAT3G
Brand: Littelfuse Inc.
SKU: SZP6SMB16CAT3G
Price: 0.25 USD
Availability: InStock

REF: SZP6SMB16CAT3G Littelfuse Inc.

SZP6SMB16CAT3G

Littelfuse Inc.

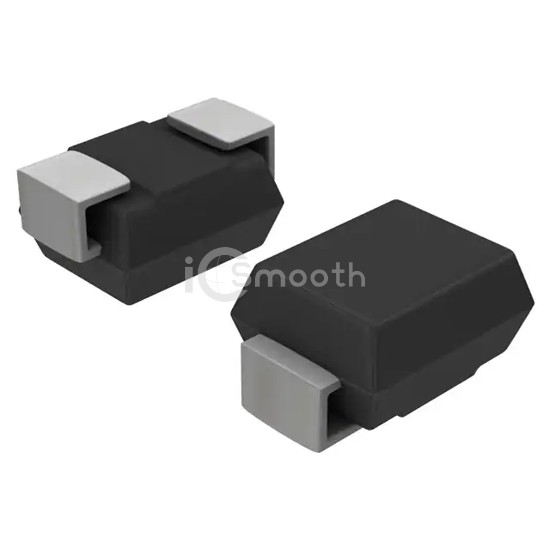

TVS DIODE 13.6VWM 22.5VC SMB

SZP6SMB16CAT3G is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 13.6VWM 22.5VC SMB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 241

Tiered Pricing USD

1+ $0.2500 —

10+ $0.2290 -8%

100+ $0.2210 -12%

500+ $0.2150 -14%

1,000+ $0.2130 -15% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	13.6V
Voltage - Breakdown (Min)	15.2V
Voltage - Clamping (Max) @ Ipp	22.5V
Current - Peak Pulse (10/1000µs)	27A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	610pF @ 1MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
