Name: SZ1SMB22AT3G
Brand: Littelfuse Inc.
SKU: SZ1SMB22AT3G
Price: 0.22 USD
Availability: InStock

REF: SZ1SMB22AT3G Littelfuse Inc.

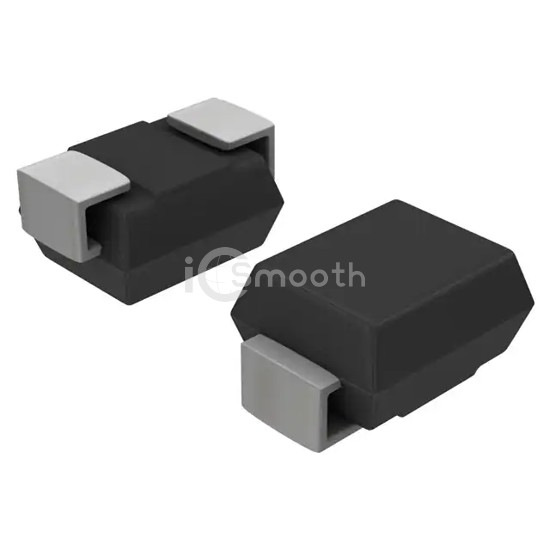

SZ1SMB22AT3G

TVS DIODE 22VWM 35.5VC SMB

SZ1SMB22AT3G is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 22VWM 35.5VC SMB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 15,543

Tiered Pricing USD

1+ $0.2200 —

10+ $0.1840 -16%

100+ $0.1683 -24% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	16.9A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	730pF @ 1MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
