Name: SZ1SMB14CAT3G
Brand: Littelfuse Inc.
SKU: SZ1SMB14CAT3G
Price: 0.24 USD
Availability: InStock

REF: SZ1SMB14CAT3G Littelfuse Inc.

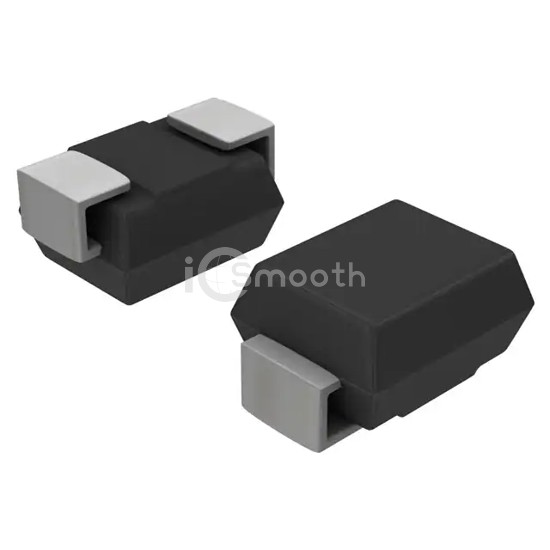

SZ1SMB14CAT3G

TVS DIODE 14VWM 23.2VC SMB

SZ1SMB14CAT3G is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 14VWM 23.2VC SMB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 1,880

Tiered Pricing USD

1+ $0.2400 —

10+ $0.2260 -6%

100+ $0.2200 -8%

500+ $0.2150 -10%

1,000+ $0.2090 -13% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	14V
Voltage - Breakdown (Min)	15.6V
Voltage - Clamping (Max) @ Ipp	23.2V
Current - Peak Pulse (10/1000µs)	25.8A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	590pF @ 1MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
