Name: SZ1SMA22AT3G
Brand: Littelfuse Inc.
SKU: SZ1SMA22AT3G
Price: 0.45 USD
Availability: InStock

REF: SZ1SMA22AT3G Littelfuse Inc.

SZ1SMA22AT3G

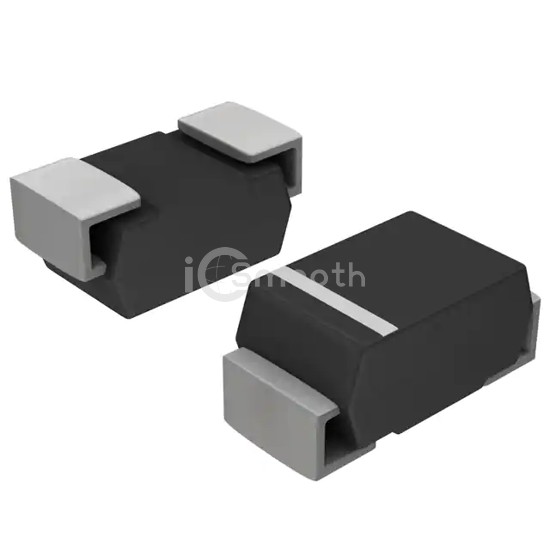

TVS DIODE 22VWM 35.5VC SMA

SZ1SMA22AT3G is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 22VWM 35.5VC SMA. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AC, SMA.

Datasheet Request a Quote

In Stock: 8,233

Tiered Pricing USD

1+ $0.4500 —

10+ $0.3900 -13%

100+ $0.2710 -40%

500+ $0.2120 -53%

1,000+ $0.1720 -62% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	11.3A

Power - Peak Pulse	400W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	540pF @ 1MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA
