Name: SR05-02CTG
Brand: Littelfuse Inc.
SKU: SR05-02CTG
Price: 0.27 USD
Availability: InStock

REF: SR05-02CTG Littelfuse Inc.

SR05-02CTG

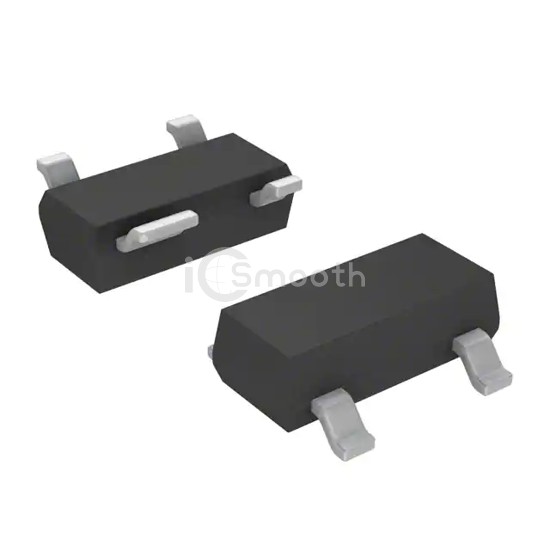

TVS DIODE 5VWM 18VC SOT143

SR05-02CTG is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 5VWM 18VC SOT143. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOT-143R.

Datasheet Request a Quote

In Stock: 7,838

Tiered Pricing USD

3,000+ $0.2711 —

6,000+ $0.2526 -7%

9,000+ $0.2494 -8% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Steering (Rail to Rail)
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	18V
Current - Peak Pulse (10/1000µs)	25A (8/20µs)

Power - Peak Pulse	450W
Power Line Protection	Yes
Applications	Ethernet
Capacitance @ Frequency	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-143R
Supplier Device Package	SOT-143
