Name: SP36-01WTG-C-HV
Brand: Littelfuse Inc.
SKU: SP36-01WTG-C-HV
Price: 0.23 USD
Availability: InStock

REF: SP36-01WTG-C-HV Littelfuse Inc.

SP36-01WTG-C-HV

Littelfuse Inc.

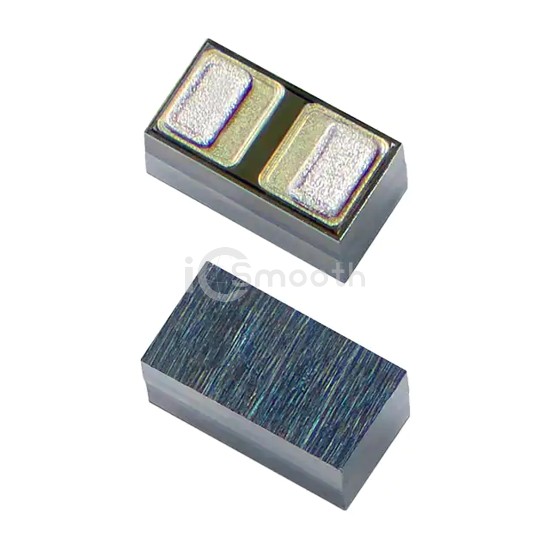

TVS DIODE 36VWM 48VC 2FLIPCHIP

SP36-01WTG-C-HV is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 36VWM 48VC 2FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 2-XFDFN, FCDFN.

Datasheet Request a Quote

In Stock: 4,600

Tiered Pricing USD

1+ $0.2300 —

10+ $0.0630 -73%

100+ $0.0520 -77% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	36V (Max)
Voltage - Breakdown (Min)	40V
Voltage - Clamping (Max) @ Ipp	48V
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	100W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	10pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-XFDFN, FCDFN
Supplier Device Package	2-FlipChip
