Name: SP3522-01UTG
Brand: Littelfuse Inc.
SKU: SP3522-01UTG
Price: 0.25 USD
Availability: InStock

REF: SP3522-01UTG Littelfuse Inc.

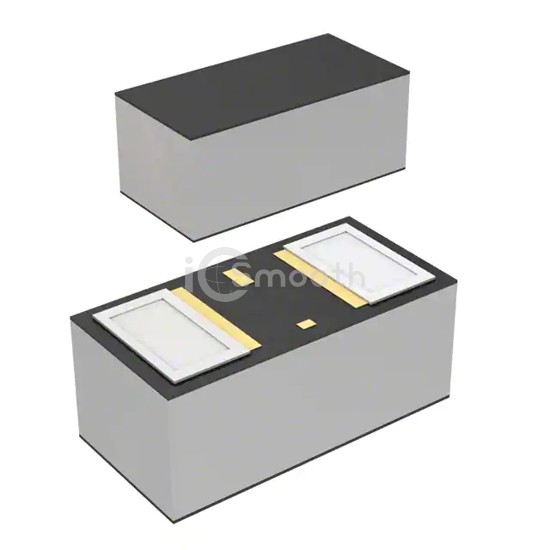

SP3522-01UTG

TVS DIODE 7VWM 14.5VC 0201

SP3522-01UTG is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 7VWM 14.5VC 0201. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 0201 (0603 Metric).

Datasheet Request a Quote

In Stock: 4,097

Tiered Pricing USD

1+ $0.2500 —

10+ $0.1590 -36%

100+ $0.0650 -74% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	9.2V (Typ)
Voltage - Clamping (Max) @ Ipp	14.5V (Typ)
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Automotive, HDMI
Capacitance @ Frequency	0.15pF @ 3GHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201/DFN0603
