Name: SP1224-01UTG
Brand: Littelfuse Inc.
SKU: SP1224-01UTG
Price: 1.42 USD
Availability: InStock

REF: SP1224-01UTG Littelfuse Inc.

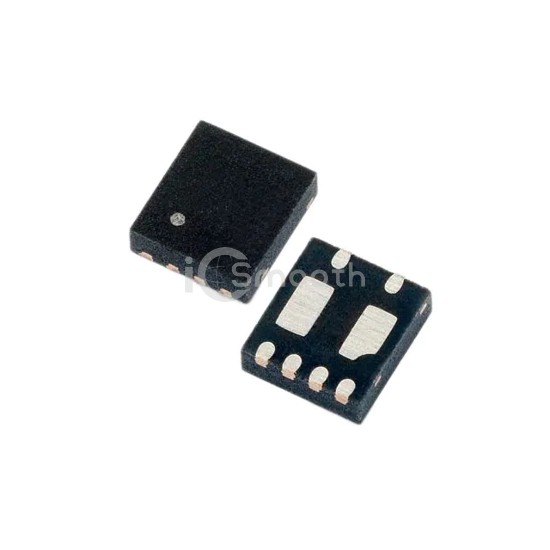

SP1224-01UTG

TVS DIODE 22VWM 37VC 6UDFN

SP1224-01UTG is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 22VWM 37VC 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,762

Tiered Pricing USD

1+ $1.4200 —

10+ $0.8980 -37%

100+ $0.5959 -58%

500+ $0.4662 -67%

1,000+ $0.4245 -70% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V (Max)
Voltage - Breakdown (Min)	24V
Voltage - Clamping (Max) @ Ipp	37V
Current - Peak Pulse (10/1000µs)	100A (8/20µs)

Power - Peak Pulse	3700W (3.7kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	770pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	6-µDFN (1.8x2)
