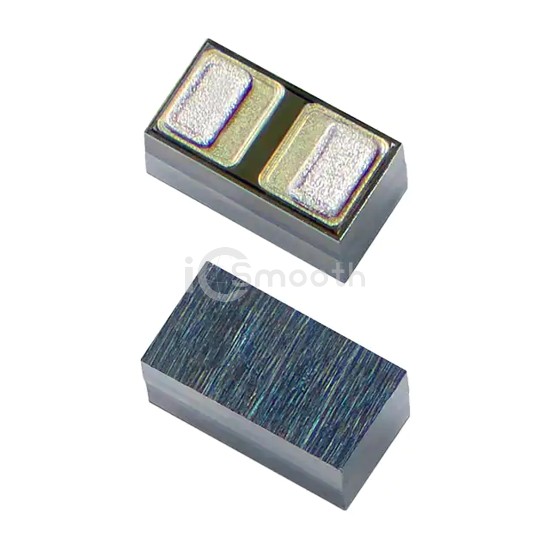

Name: SP12-01WTG-C-HV
Brand: Littelfuse Inc.
SKU: SP12-01WTG-C-HV
Price: 0.33 USD
Availability: InStock

REF: SP12-01WTG-C-HV Littelfuse Inc.

SP12-01WTG-C-HV

Littelfuse Inc.

TVS DIODE 12VWM 19VC 2FLIPCHIP

SP12-01WTG-C-HV is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 12VWM 19VC 2FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 2-XFDFN, FCDFN.

Datasheet Request a Quote

In Stock: 88,467

Tiered Pricing USD

1+ $0.3300 —

10+ $0.2010 -39%

100+ $0.0740 -78%

500+ $0.0700 -79%

1,000+ $0.0650 -80%

2,000+ $0.0645 -80%

5,000+ $0.0638 -81% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	12V (Max)
Voltage - Breakdown (Min)	13.3V
Voltage - Clamping (Max) @ Ipp	19V
Current - Peak Pulse (10/1000µs)	8A (8/20µs)

Power - Peak Pulse	100W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	26pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	2-XFDFN, FCDFN
Supplier Device Package	2-FlipChip
