Name: SP1015-04WTG
Brand: Littelfuse Inc.
SKU: SP1015-04WTG
Price: 0.57 USD
Availability: InStock

REF: SP1015-04WTG Littelfuse Inc.

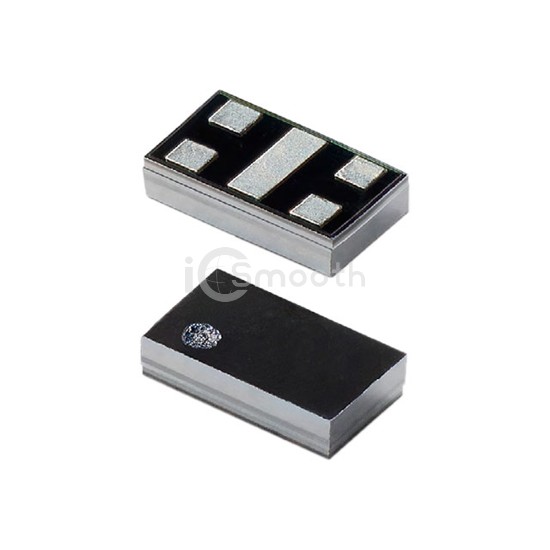

SP1015-04WTG

TVS DIODE 5VWM 12VC 4FLIPCHIP

SP1015-04WTG is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 5VWM 12VC 4FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 4-XFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,242

Tiered Pricing USD

1+ $0.5700 —

10+ $0.5510 -3%

100+ $0.4010 -30%

500+ $0.3380 -41%

1,000+ $0.3060 -46%

2,000+ $0.2979 -48% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	4
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	12V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	5pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-XFDFN Exposed Pad
Supplier Device Package	4-FlipChip (0.95 x 0.55)
