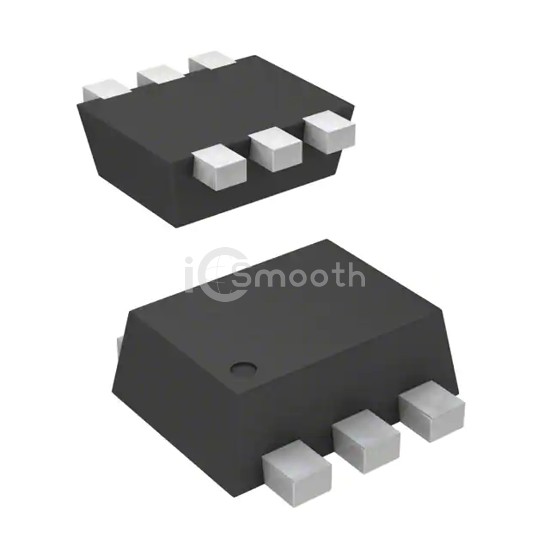

Name: SP1001-05XTG
Brand: Littelfuse Inc.
SKU: SP1001-05XTG
Price: 0.52 USD
Availability: InStock

REF: SP1001-05XTG Littelfuse Inc.

SP1001-05XTG

TVS DIODE 5.5VWM 13VC SOT563

SP1001-05XTG is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 5.5VWM 13VC SOT563. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOT-563, SOT-666.

Datasheet Request a Quote

In Stock: 2,595

Tiered Pricing USD

1+ $0.5200 —

10+ $0.4660 -10%

100+ $0.3750 -28%

500+ $0.3175 -39%

1,000+ $0.2530 -51% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	5
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	7V
Voltage - Clamping (Max) @ Ipp	13V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563
