Name: SMAJ5.0CA
Brand: Littelfuse Inc.
SKU: SMAJ5.0CA
Price: 0.32 USD
Availability: InStock

REF: SMAJ5.0CA Littelfuse Inc.

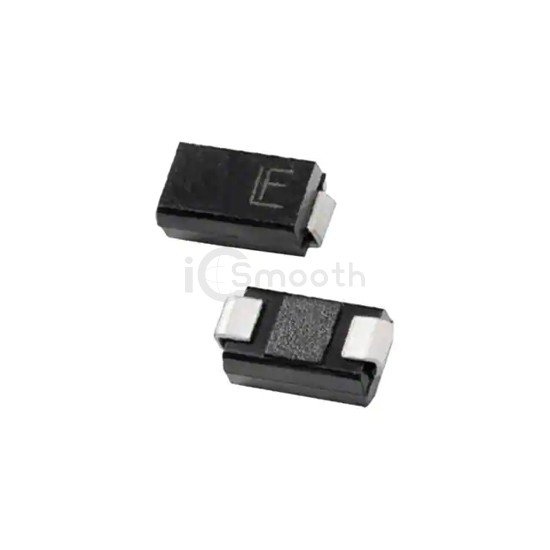

SMAJ5.0CA

TVS DIODE 5VWM 9.2VC DO214AC

SMAJ5.0CA is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 5VWM 9.2VC DO214AC. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AC, SMA.

Datasheet Request a Quote

In Stock: 116,957

Tiered Pricing USD

1+ $0.3200 —

10+ $0.2380 -26%

100+ $0.1610 -50%

500+ $0.1241 -61%

1,000+ $0.0990 -69%

2,000+ $0.0990 -69% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	6.4V
Voltage - Clamping (Max) @ Ipp	9.2V
Current - Peak Pulse (10/1000µs)	43.5A

Power - Peak Pulse	400W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	DO-214AC (SMA)
