Name: SK255KDTP
Brand: Littelfuse Inc.
SKU: SK255KDTP
Availability: InStock

REF: SK255KDTP Littelfuse Inc.

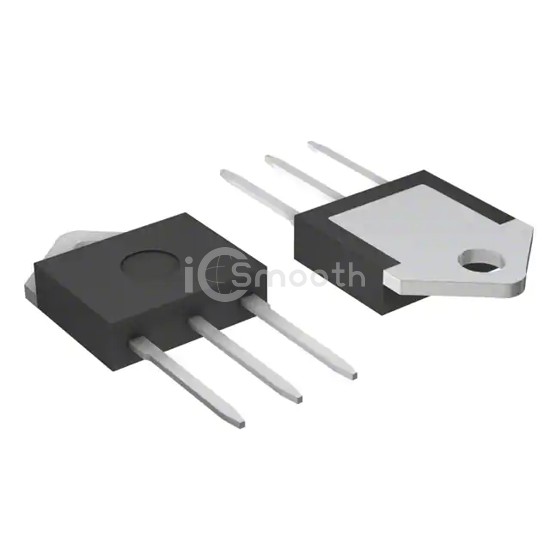

SK255KDTP

SCR 1.2KV 55A TO218AC

SK255KDTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 1.2KV 55A TO218AC. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-218-3.

Datasheet Request a Quote

In Stock: 8,541

Specifications

15 parameters

Product Status	Obsolete
Voltage - Off State	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	35 A
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	120 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	-
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-218-3
Supplier Device Package	TO-218AC
