Name: SJ6040NTP
Brand: Littelfuse Inc.
SKU: SJ6040NTP
Price: 6.05 USD
Availability: InStock

REF: SJ6040NTP Littelfuse Inc.

SJ6040NTP

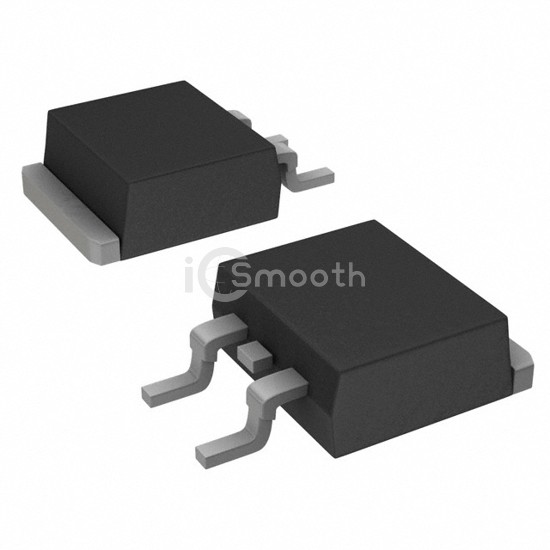

SCR 600V 40A TO263

SJ6040NTP is a Thyristors - SCRs manufactured by Littelfuse Inc.. SCR 600V 40A TO263. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 458

Tiered Pricing USD

1+ $6.0500 —

10+ $4.0790 -33%

100+ $2.9606 -51%

500+ $2.7235 -55% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	600 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	40 mA
Voltage - On State (Vtm) (Max)	1.7 V
Current - On State (It (AV)) (Max)	25 A
Current - On State (It (RMS)) (Max)	40 A
Current - Hold (Ih) (Max)	60 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	430A, 520A
SCR Type	Sensitive Gate
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263 (D²Pak)
