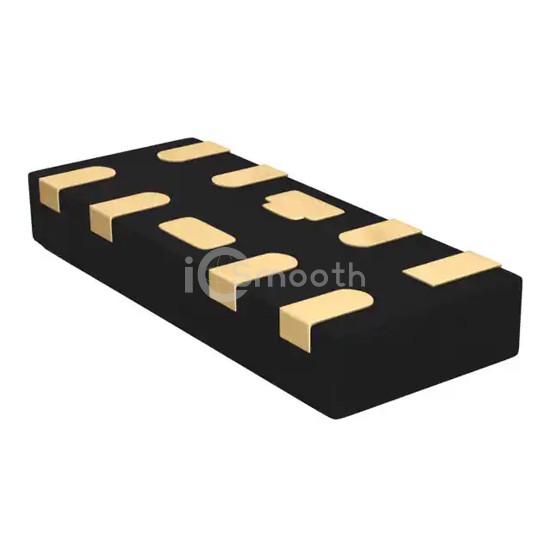

Name: SESD1004Q4UG-0020-090
Brand: Littelfuse Inc.
SKU: SESD1004Q4UG-0020-090
Price: 0.99 USD
Availability: InStock

REF: SESD1004Q4UG-0020-090 Littelfuse Inc.

SESD1004Q4UG-0020-090

Littelfuse Inc.

TVS DIODE 7VWM 9.2VC 1004/10DFN

SESD1004Q4UG-0020-090 is a TVS - Diodes manufactured by Littelfuse Inc.. TVS DIODE 7VWM 9.2VC 1004/10DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 10-XFDFN.

Datasheet Request a Quote

In Stock: 2,101

Tiered Pricing USD

1+ $0.9900 —

10+ $0.8100 -18%

100+ $0.5220 -47%

500+ $0.4905 -50%

1,000+ $0.4590 -54%

2,000+ $0.4498 -55% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	7V (Max)
Voltage - Breakdown (Min)	9V (Typ)
Voltage - Clamping (Max) @ Ipp	9.2V (Typ)
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	No
Applications	Automotive, HDMI
Capacitance @ Frequency	0.2pF @ 3GHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-XFDFN
Supplier Device Package	1004/10DFN (2.5x1.0)
